$185.95

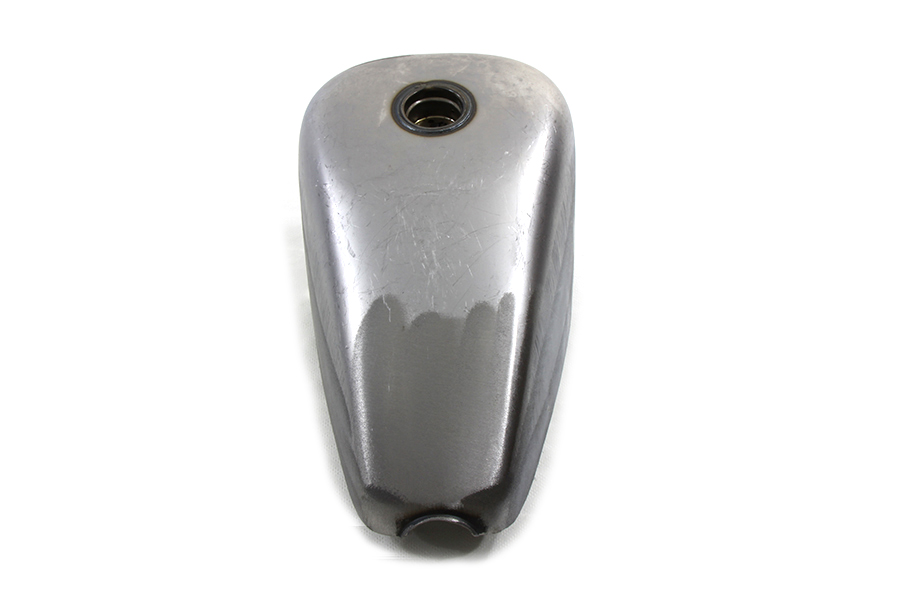

- Replica gas tank has a right side petcock location, and a fuel capacity of 2.4 gallons.
- Sportster gas tank is a stock styled high tunnel tank that features stock mounts and filler neck.
- Check the tank for flaws and fit before painting.
- Do not grind or sand the seams or joints. Clean the inside of the tank.
- It is suggested to pressure test and use a tank sealer.
- We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion.
- Check petcock opening, making sure the petcock can be easily installed.
- Petcock fitting should be masked or plugged during painting for easy installation of petcock.
- *NOTE: Must order gas tank mounting kit and hardware separately.
- *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
- NOTE GAS TANKS MY NEED SOME BODY WORK, ALL GAS TANKS WILL NEED TO BE PAINTED
Suggested to use with #38-0217 Gas Tank Mounting Kit.(NOT INCLUDED)
MEASUREMENTS
Top Length: 17-1/2"
Bottom Length: 17"
Rear Width: 4-1/2"
Front Width: 8-3/4"
Rear Height: 1-1/2"
Front Height: 7-3/4"
Front Tunnel Height: 3-3/4"
Rear Tunnel Height: 1/2"
Tunnel Length: 17"
FITS
XL 1993-2003
OEM # 61023-93
