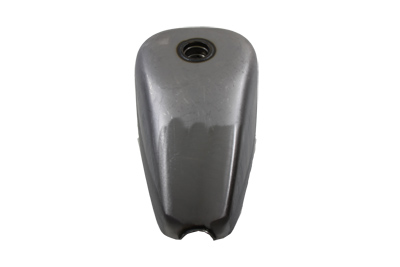

• Replica gas tank has a right side petcock location, and a fuel capacity of 2.4 gallons.

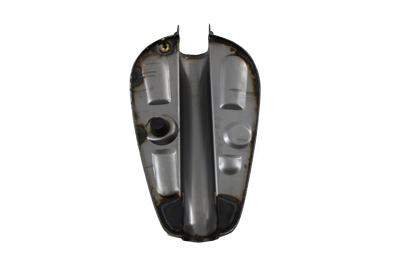

• The tank is a stock styled high tunnel tank that features stock mounts and filler neck.
• It uses a 1975-up type petcock.
• Check the tank for flaws or fit before painting.
• Do not grind or sand the seams or joints.
• Clean the inside of the tank. It is suggested to pressure test and use a tank sealer.
• We suggest using Kreem gas tank combo kit to clean, condition and seal to help stop leaks and prevent corrosion.
• Check petcock opening, making sure the petcock can be easily installed.
• The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
  *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
• NOTE GAS TANKS MY NEED SOME BODY WORK, ALL GAS TANKS WILL NEED TO BE PAINTED

  Suggested to use gas cap #38-0317, #38-0757, or #38-0361.(NOT INCLUDED)


  MEASUREMENTS

  Top Length: 16"
  Bottom Length: 14"
  Rear Width: 4"
  Front Width: 8-1/2"
  Rear Height: 1"
  Front Height: 6-3/4"
  Front Tunnel Height: 4"
  Rear Tunnel Height: 3/4"
  Tunnel Length: 16-3/4"
  Tunnel Width: 2-1/8"


  FITS

  XL 1982-1992



           OEM # 61023-83
