$161.95

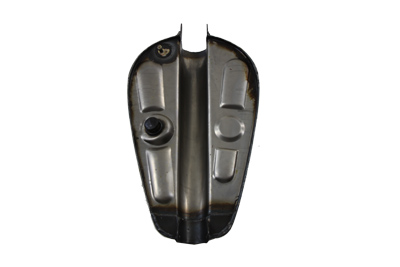

- Replica gas tank has a right side petcock location, and a fuel capacity of 2.4 gallons.
- Tank is a stock styled high tunnel tank that features stock mounts and filler neck.
- Includes vent tube, accepts an early petcock, and early gas cap.
- Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements.
- Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tankcombo kit to clean, condition and seal.
- This will help to stop leaks and prevent corrosion.
- Check petcock opening, making sure the petcock can be easily installed.
- Petcock fitting should be masked or plugged during painting for easy installation of petcock.
- Front mount tab holes to rear mount tab holes measures 16-5/8" center to center.
- *NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs
- NOTE GAS TANKS MY NEED SOME BODY WORK, ALL GAS TANKS WILL NEED TO BE PAINTED
MEASUREMENTS
Top Length: 16-1/2"
Bottom Length: 14"
Rear Width: 4-1/2"
Front Width: 8-1/2"
Rear Height: 1-1/2"
Front Height: 6-3/4"
Front Tunnel Height: 3-3/4"
Rear Tunnel Height: 1"
Tunnel Length: 16-3/4"
FITS
K 1952-1956
XLCH 1957-1970
