$321.95

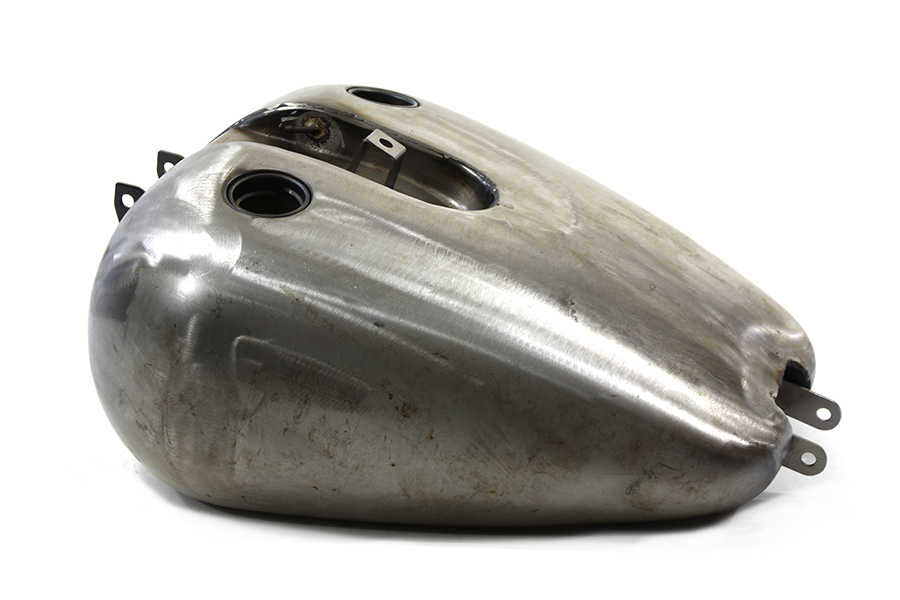

- Bobbed gas tank is dual cap type for carburetor models.
- It features a left side fuel gauge bung, and a right side screw bung.
- Order gas caps separately. Tank is not for fuel injected models.
- Check the tank for flaws and fit before painting.
- It requires sanding and primer.
- Do not grind or sand the seams or joints.
- Check the petcock opening, making sure the petcock can be easily installed.
- The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
- It is suggested to pressure test and use a tank sealer.
- We suggest using Kreem gas tank combo kit to clean, condition and seal to help stop leaks and prevent corrosion.
- *NOTE: Does not have internal wires for the gas gauge.
- NOTE GAS TANKS MY NEED SOME BODY WORK, ALL GAS TANKS WILL NEED TO BE PAINTED
Use 1996-up style gas caps.(NOT INCLUDED)
Suggested to use #41-0113 Kreem gas tank combo kit(NOT INCLUDED)
Suggested to use #2076-10 gas tank mounting kit.(NOT INCLUDED)
MEASUREMENTS
Top Length: 18-1/2"
Bottom Length: 18-1/4"
Rear Width: 9-1/2"
Front Width: 15"
Front Width: 15"
Front Height: 8"
Front Tunnel Height: 6-1/2"
Rear Tunnel Height: 1-1/2"
Tunnel Length: 18-1/2"
Front Bracket Width: 3"
Rear Bracket Width: 1"
Bracket to Bracket: 20-3/4"
FITS
FXDWG 1996-2003 carburetor models
OEM # 61039-96
