$242.95

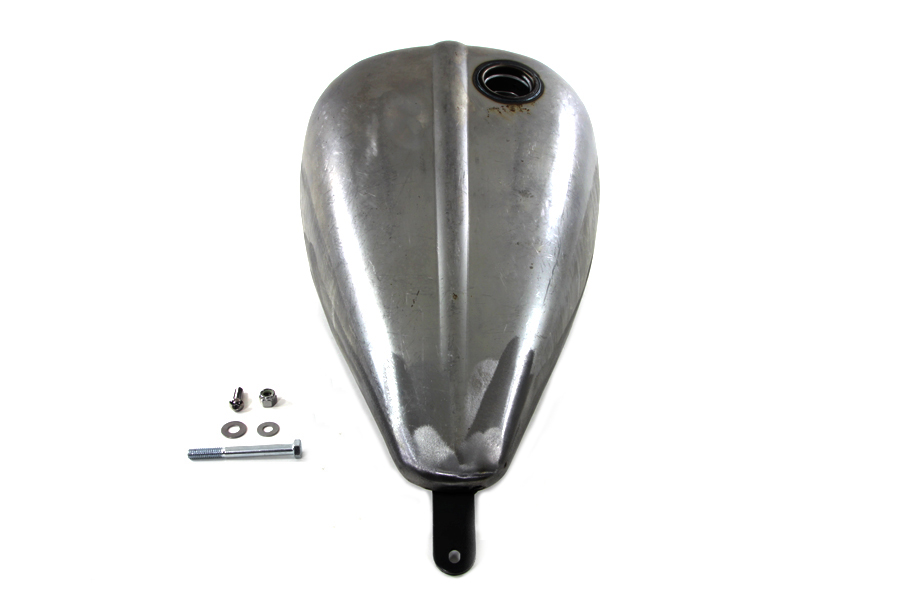

- Bobbed gas tank accepts a left side petcock and has a fuel capacity of 2.3 gallons.
- Tank includes mounting hardware.
- Check the tank for flaws and fit before painting.
- Do not grind or sand the seams or joints.
- Clean the inside of the tank.
- It is suggested to pressure test and use a tank sealer.
- We suggest using Kreem gas tank combo kit to clean, condition and seal to help stop leaks and prevent corrosion.
- Check petcock opening, making sure the petcock can be easily installed.
- Petcock fitting should be masked or plugged during painting for easy installation of petcock.
- Order vented bung cap separately. Relocation of the ignition coil may be required on some models, to do so order motor mount separately.
NOTE GAS TANKS MY NEED SOME BODY WORK, ALL GAS TANKS WILL NEED TO BE PAINTED
MEASUREMENTS
Top Length: 18-3/4"
Bottom Length: 16-1/4"
Tunnel Length: 16-5/8"
Rear Width: 3-1/4"
Front Width: 11-1/4"
Height Rear: 1-1/4"
Height Front: 8-5/8"
Height Tunnel Front: 6"
Height Tunnel Rear: 3/16"
FITS
FXST 2000-2006
