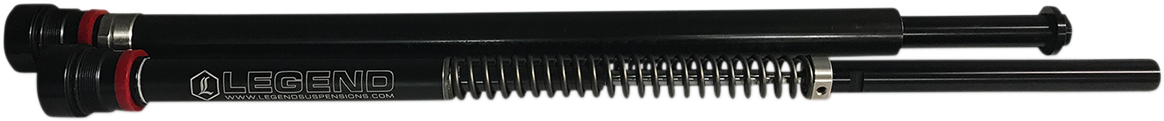

Legend 43mm Axeo Inverted Front Fork Cartridge Shock Kit 2019-20 Harley FXDR 114

Features

• Replaces the asymmetrical stock internals with a highperformance twin cartridge set (despite different mounting requirements)
• Drop-in cartridge that installs easily in a few simple steps

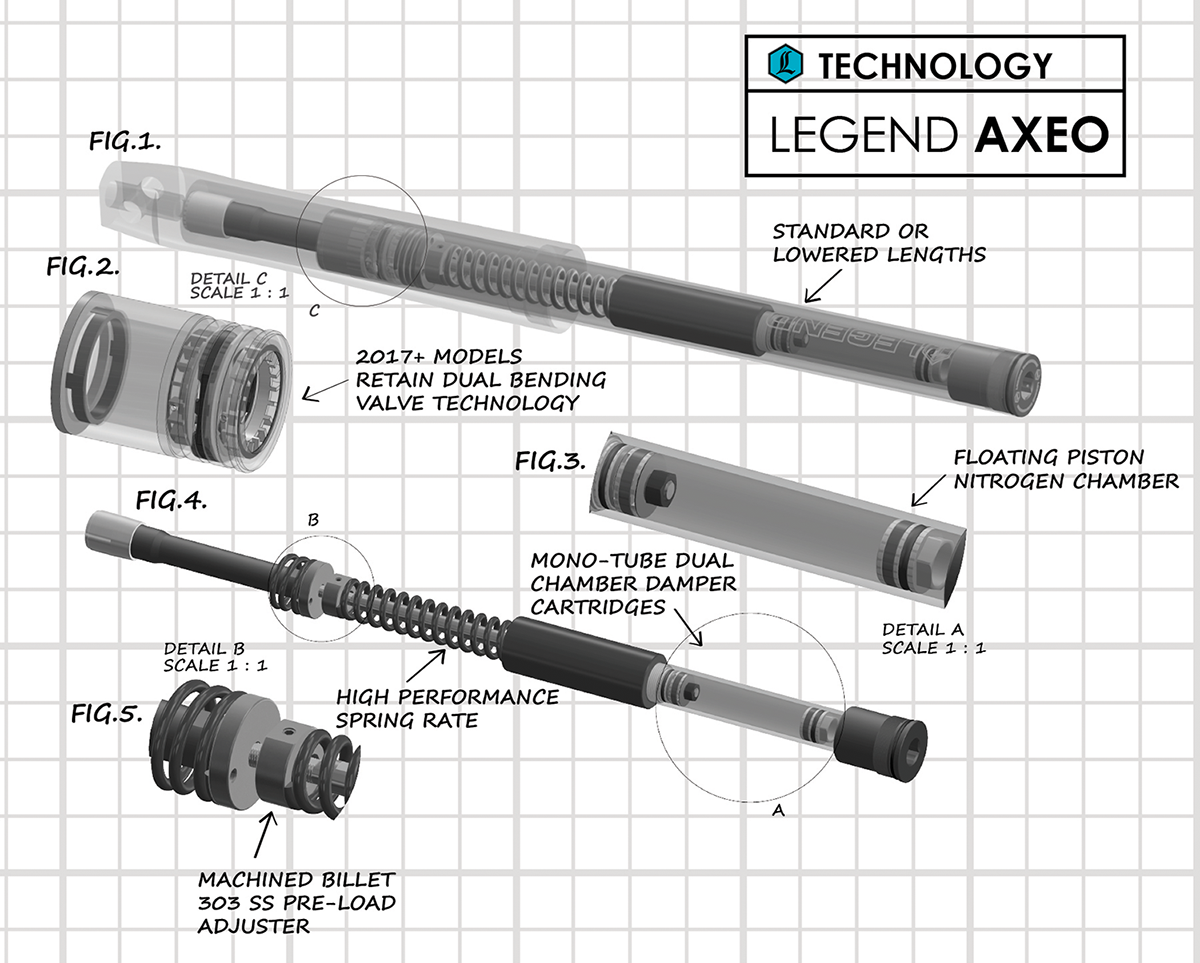

• Includes two mono-tube, dual-chambered, suspension fluid-filled damper cartridges
• Nitrogen chamber with internal floating piston
• Sealed with a high-pressure core Schrader valve specific to nitrogen
• Damper piston and deflective disc shim stack
• Performance-rated springs with internal linear spring guide and top-out springs
• Machined 303 stainless steel threaded pre-load adjuster
• Micrometer preload adjuster and internal linear spring guide is designed for and unique to the Legend AXEO43 system
• Increased pre-load range allows fine tuning for various riding styles and weights
• Internal rebound top-out spring
• Hydraulic bumper with polyurethane bump stop
• Ride quality is smooth and controlled
• Improves stability, cornering and traction
• Eliminates front-end dive during aggressive braking and maneuvering
• Firm feel for high-speed sweeping turns
• Eliminates bottoming out on large bumps or potholes
• Reduces dragging floorboards and pegs
• Designed for optimum performance with Legend rear suspension system
•  NOTE: Incorporates static sag to shorten overall fork tube length by approximately 1/2", resulting in weight transferred to the front wheel for improved handling.
• Lifetime Warranty
• Made by hand in Sturgis, SD USA
