9 in stock
09320230
Feuling HP+ High Volume Oil Pump Kit for 2017-2024 Harley Touring Water Cooled
Feuling HP+ High Volume Oil Pump Kit for 2017-2024 Harley Touring Water Cooled
Regular price
$799.95
Sale price
$799.95
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Product Details
Brand
Feuling
Manufacturer Part Number
7198
Model
HP+®
Color
Red
Condition
New
Package Quantity
Kit
Warranty
1 Year
Style
Performance Replacement
UPC
Does Not Apply
Note to Buyer
- Increase oil pressure, oil volume, engine oil flow and return oil scavenging
- Quieter and smoother engine operation
- 15-25 degree cooler engine temperatures
- 15-30 degree cooler oil temperatures
- 10-30 more psi of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
- Feuling test results show as much as 50% reduction of engine sump oil level

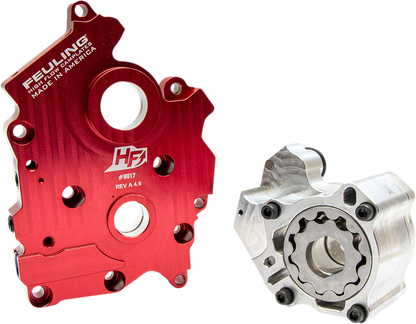

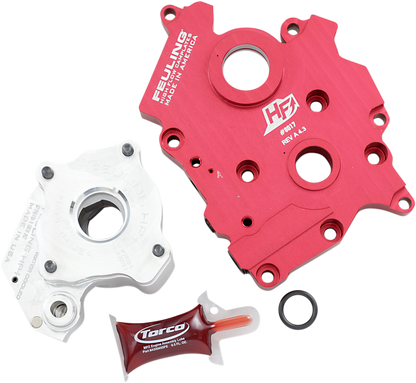

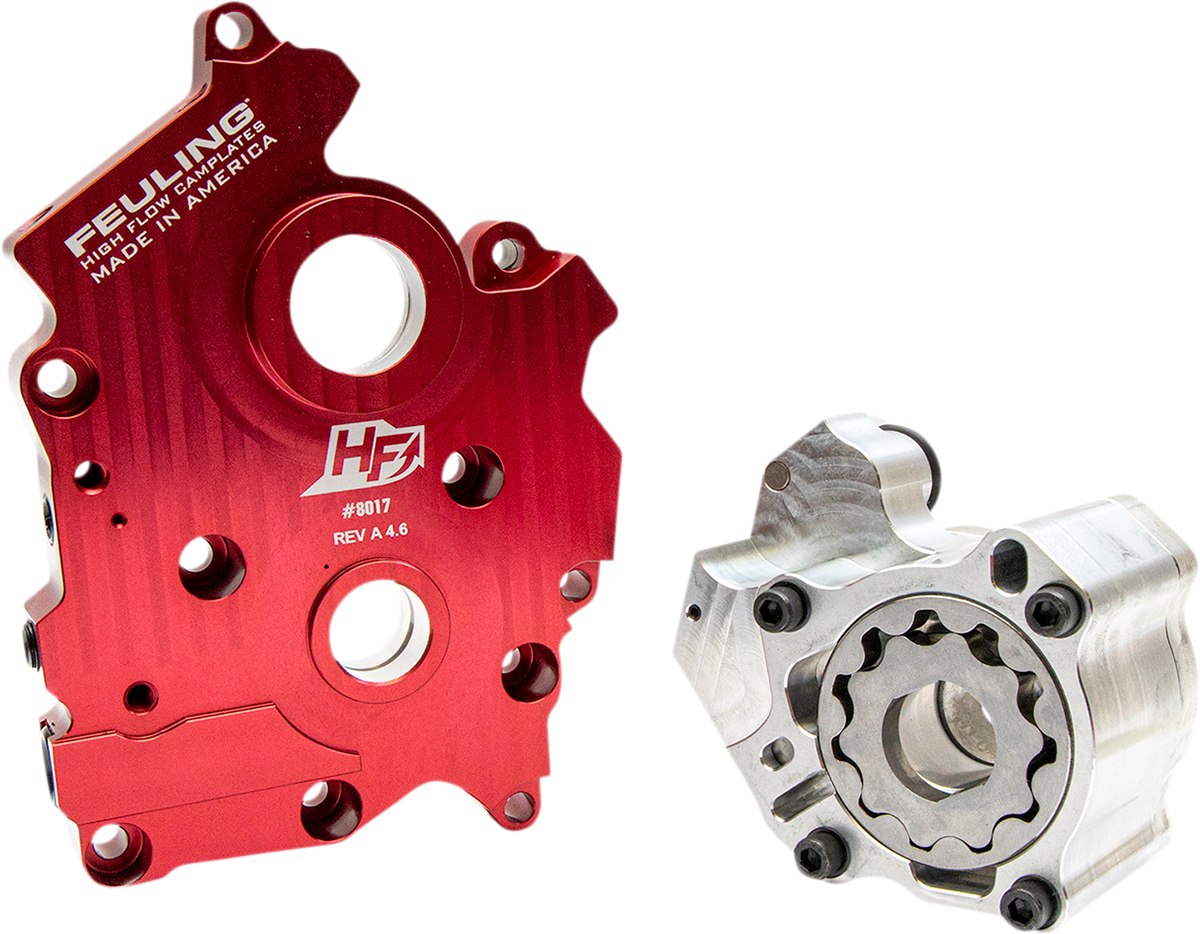

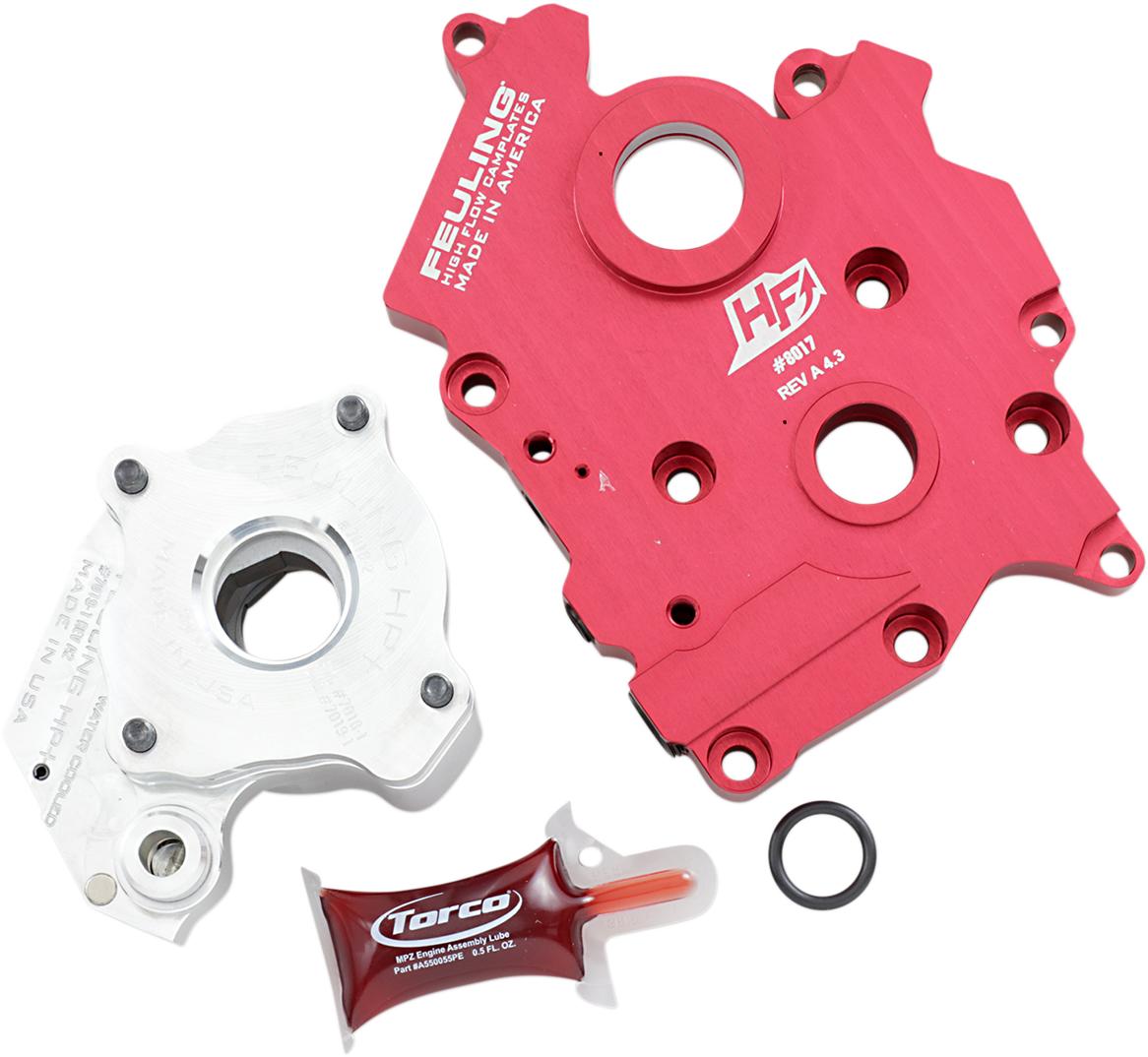

- Includes a billet 6061 aluminum high-volume oil pump and Feulings® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
- Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
- Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
- 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- Gear or Chain drive on M8 water cooled engines
- Do not overfill oil tank, it is important to get the correct hot oil level in your bike, Feuling recommends running the oil level 90%-99% full when hot.
- The M8 oil pick up port is on the right side of the engine, letting bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil leven in the tank.
- Made in the U.S.A.
SPECIFICATIONS
| PRODUCT NAME | PUMP KIT |
| TYPE | OIL |
| MODEL | HP+® |
| COLOR/FINISH | RED |
| UNITS | KIT |
| RIDING STYLE | STREET |
| BASE COLOR | RED |
FITS THE FOLLOWING MODELS
| 2017-2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL |
| 2017-2019 | Harley-Davidson | Road Glide Ultra FLTRU |
| 2017-2019 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
| 2017-2021 | Harley-Davidson | CVO Electra Glide Ultra Limited FLHTKSE |
| 2017-2022 | Harley-Davidson | Road King EFI FLHR |
| 2017-2023 | Harley-Davidson | Street Glide Special FLHXS |
| 2017-2023 | Harley-Davidson | Road Glide Special FLTRXS |
| 2017-2024 | Harley-Davidson | Electra Glide Ultra Limited FLHTK |
| 2017-2024 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG |
| 2017-2024 | Harley-Davidson | Street Glide EFI FLHX |
| 2017-2024 | Harley-Davidson | Road King Special FLHRXS |
| 2017-2024 | Harley-Davidson | Freewheeler FLRT |
| 2017-2024 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2017-2024 | Harley-Davidson | Road Glide Custom FLTRX |
| 2017-2024 | Harley-Davidson | CVO Street Glide FLHXSE |
| 2017-2024 | Harley-Davidson | Road King Police FLHP |
| 2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
| 2018-2019 | Harley-Davidson | Softail Fat Boy FLFB |
| 2018-2019, 2023-2024 | Harley-Davidson | Softail Breakout FXBR |
| 2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2018-2020 | Harley-Davidson | Softail Deluxe FLDE |
| 2018-2020 | Harley-Davidson | Softail Low Rider FXLR |
| 2018-2021 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2018-2021 | Harley-Davidson | Softail Sport Glide FLSB |
| 2018-2021 | Harley-Davidson | Softail Slim FLSL |
| 2018-2023 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018-2024 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2018-2024 | Harley-Davidson | Softail Street Bob FXBB |
| 2018-2024 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2018-2024 | Harley-Davidson | CVO Road Glide Custom FLTRXSE |
| 2019-2020 | Harley-Davidson | FXDR 114 |
| 2019-2022 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
| 2020-2022 | Harley-Davidson | CVO Tri Glide FLHTCUTGSE |
| 2020-2024 | Harley-Davidson | Softail Standard FXST |
| 2020-2024 | Harley-Davidson | Road Glide Limited FLTRK |
| 2020-2024 | Harley-Davidson | Softail Low Rider S FXLRS |
| 2021 | Harley-Davidson | Electra Glide Revival |
| 2022 | Harley-Davidson | Softail Low Rider El Diablo FXRST |
| 2022-2023 | Harley-Davidson | CVO Road Glide Limited |
| 2022-2023 | Harley-Davidson | Road Glide ST FLTRXST |
| 2022-2023 | Harley-Davidson | Street Glide ST FLHXST |
| 2022-2024 | Harley-Davidson | Softail Low Rider ST FXLRST |
| 2023 | Harley-Davidson | Electra Glide Highway King FLHFB |
| 2023-2024 | Harley-Davidson | Road Glide 3 FLTRT |
| 2024 | Harley-Davidson | Road Glide Police FLTRXP |
| 2024 | Harley-Davidson | CVO Road Glide ST FLTRXSTSE |
| 2024 | Harley-Davidson | Hydra-Glide Revival |
