Feuling Econo Beehive Valve Spring Kit 2004-17 Harley Davidson Sportster XR XLL

Feuling Econo Beehive Valve Spring Kit 2004-17 Harley Davidson Sportster XR XLL

$299.95
$299.95
Shipping calculated at checkout.

Want next day delivery? Be quick!

Product Details

Brand

Feuling

Manufacturer Part Number

1123

Model

Econo Beehive

Condition

New

Package Quantity

Kit

Warranty

1 Year

Style

Custom Replacement

UPC

Does Not Apply

Note to Buyer

Orders can NOT be changed, altered or canceled
Features
  • Made from premium stress-relieved conical ovate wire
  • Feature extremely high-level of fatigue life
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Designed to handle the demands of performance engines with 585" and smaller lift camshafts

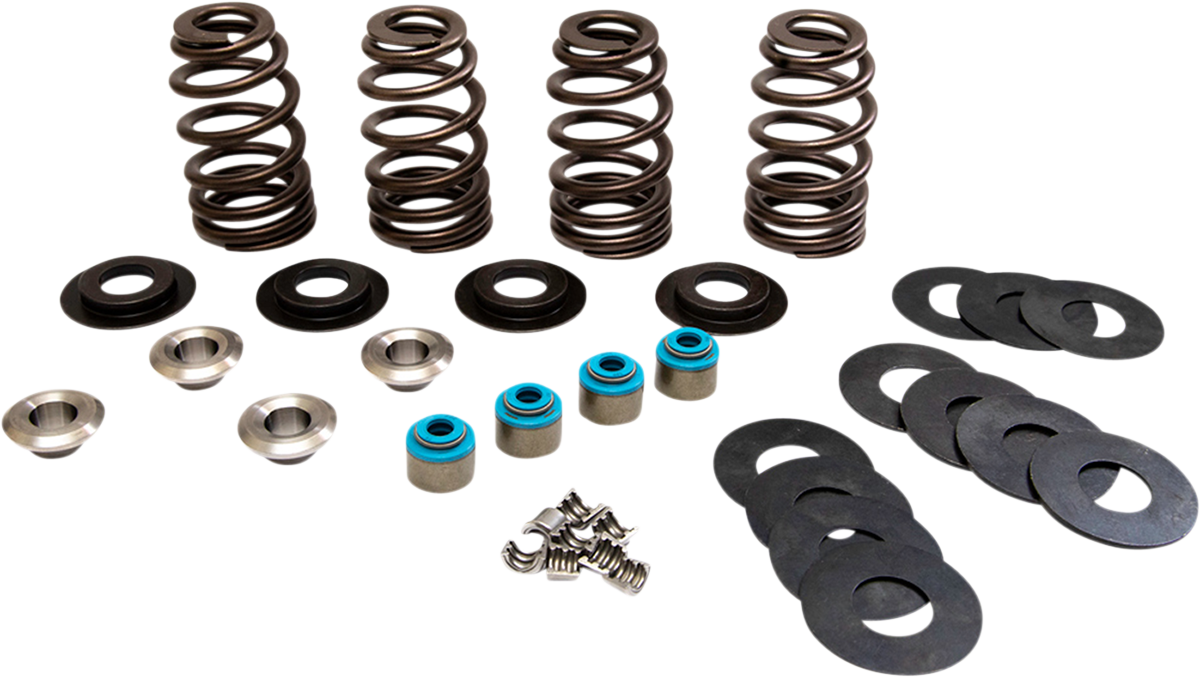

  • Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift), 175 lbs. at 1.795" (0.535" lift), 172 lbs. at 1.813" (0.553" lift), 165 lbs. at 1.835" (0.574" lift), 160 lbs. at 1.845" (0.585" lift), 380 lbs. at 1.260" OPEN HEIGHT coil bind at 1.190"
  • Dyno proven and track tested
  • Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
  • Made in the U.S.A.
  • Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.
Specs
  • Product Name: Spring Kit
  • Type: Valve
  • Style: Ovate Wire Beehive
  • Model: Econo Beehive
  • Material: Titanium / Steel
  • Stem Diameter: 0.3125"
  • Units: Kit
  • Riding Style: Street

FITS THE FOLLOWING MODELS
2004-2006 Harley-Davidson 883 XL
2004-2006 Harley-Davidson 1200 Roadster XLR
2004-2006 Harley-Davidson 1200 Custom XLC
2004-2006 Harley-Davidson 883 Custom XLC
2004-2009 Harley-Davidson 883 Custom EFI XLC
2004-2019 Harley-Davidson 1200 Custom EFI XLC
2005-2006 Harley-Davidson 883 Low XLL
2005-2007 Harley-Davidson 883 Roadster XLR
2005-2007 Harley-Davidson 883 Roadster EFI XLR
2006 Harley-Davidson 1200 Low XLL
2006-2008 Harley-Davidson 1200 Roadster EFI XLR
2006-2010 Harley-Davidson 883 Low EFI XLL
2006-2011 Harley-Davidson 1200 Low EFI XLL
2007 Harley-Davidson Sportster 1200 XL 50
2007-2009 Harley-Davidson 883 EFI XL
2007-2012 Harley-Davidson 1200 Nightster XLN
2009-2012 Harley-Davidson Sportster 1200 XR
2009-2012 Harley-Davidson Sportster 1200 X XR
2009-2020 Harley-Davidson Iron 883 XLN
2010-2020 Harley-Davidson Forty-Eight XLX
2011-2017 Harley-Davidson 1200 XLCP
2011-2019 Harley-Davidson 883 SuperLow XLL
2012-2016 Harley-Davidson Seventy-Two XLV
2014-2017 Harley-Davidson SuperLow 1200 XLT
2016-2020 Harley-Davidson 1200 Roadster XLCX
2018-2019 Harley-Davidson Forty-Eight Special XLXS
2018-2020 Harley-Davidson Iron 1200 XLNS
