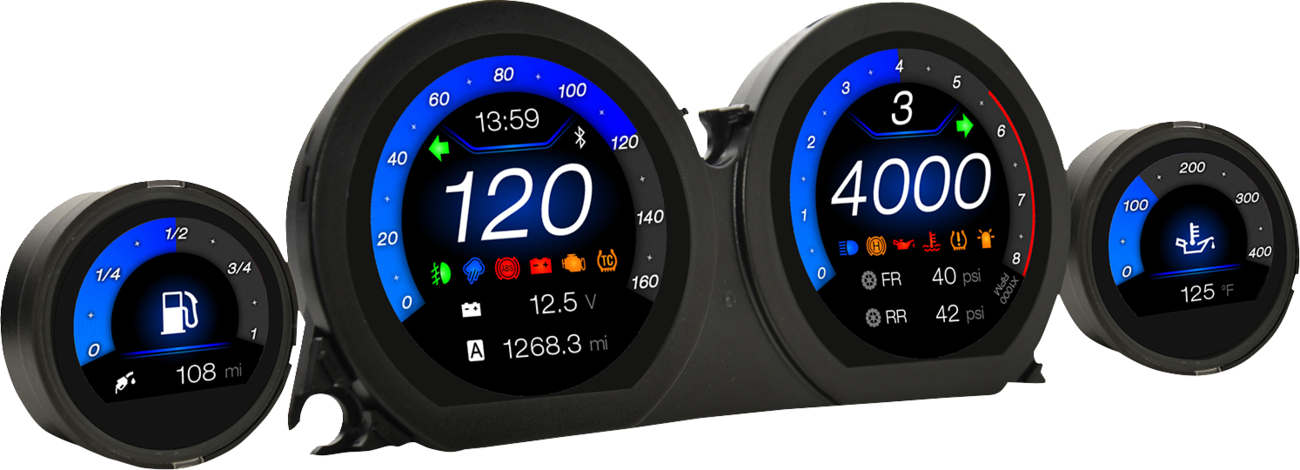

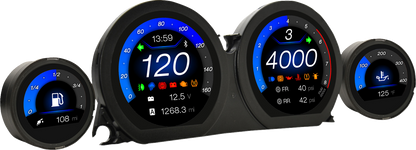

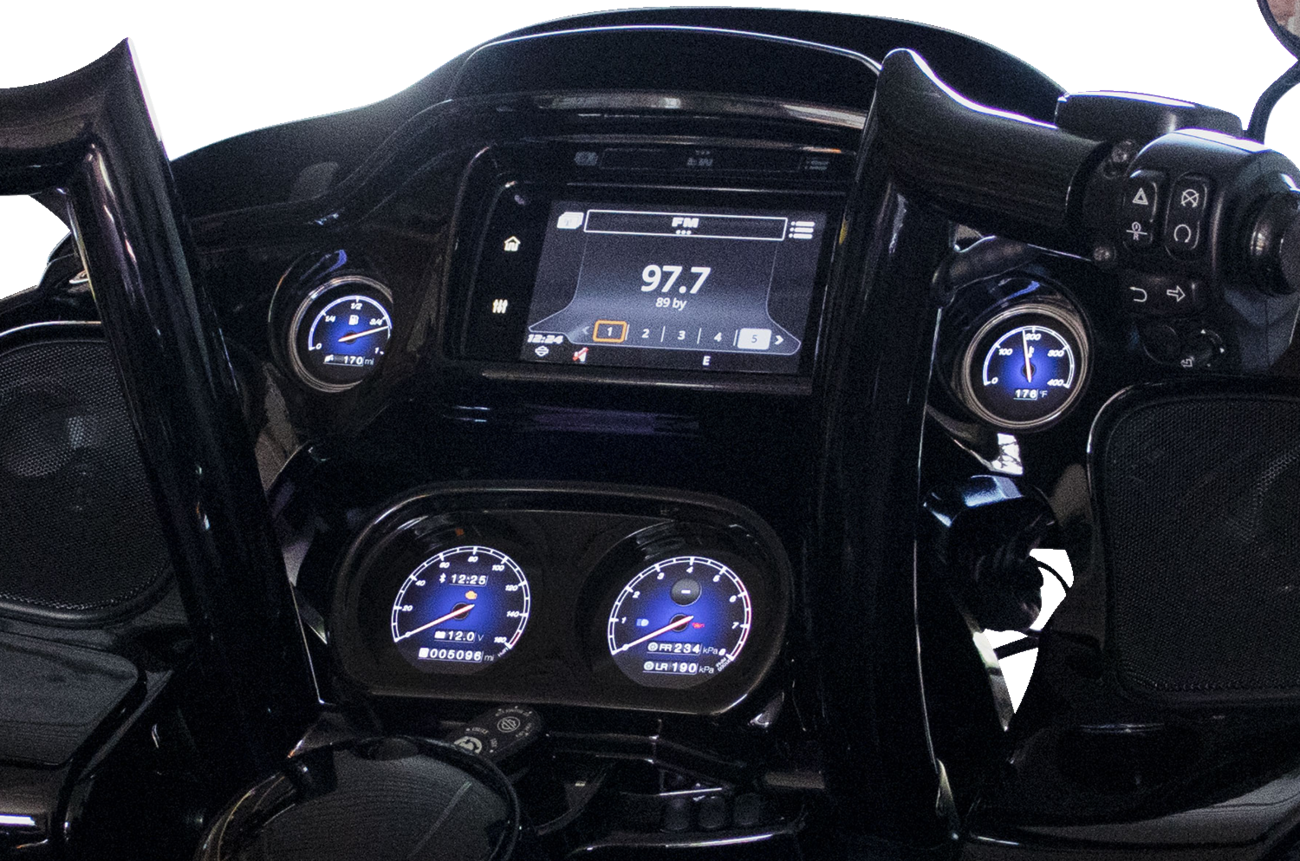

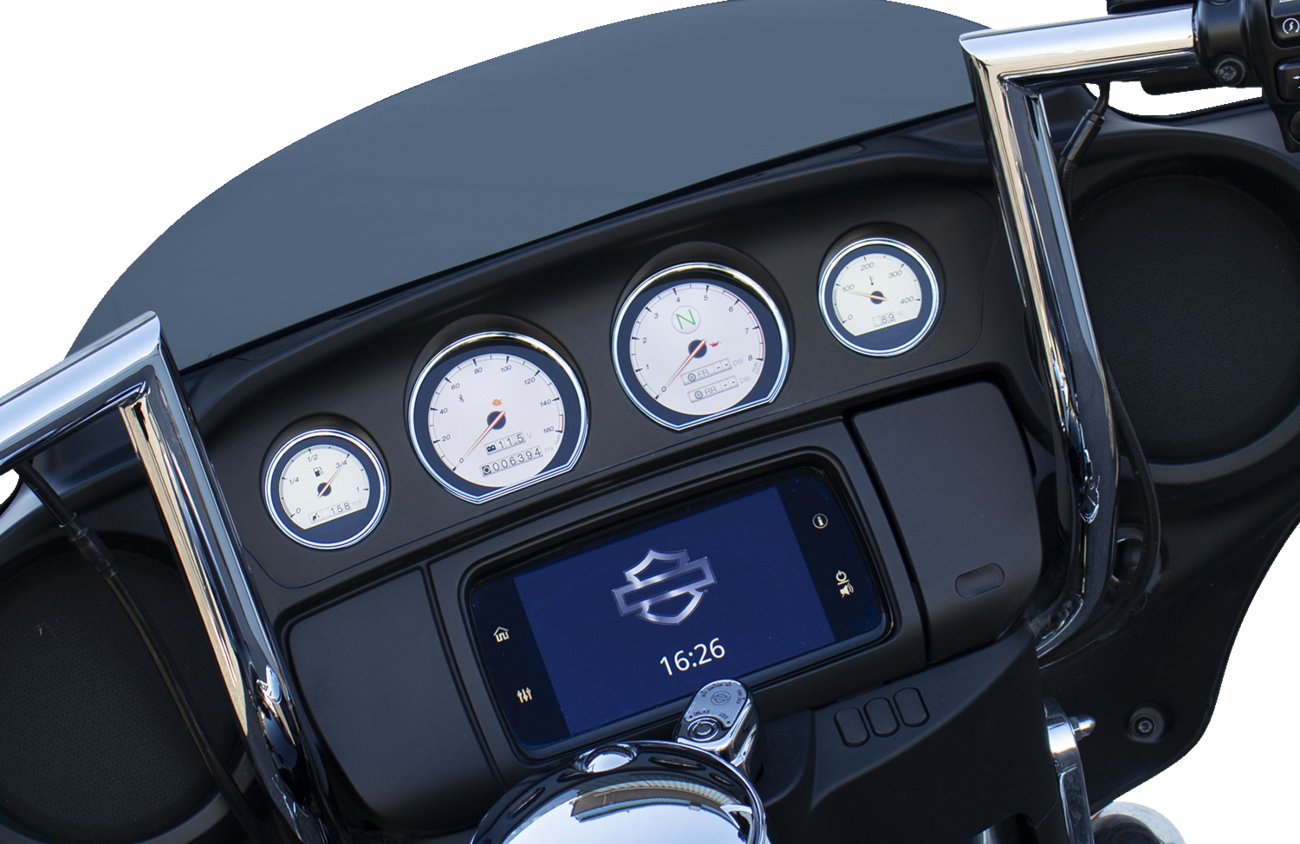

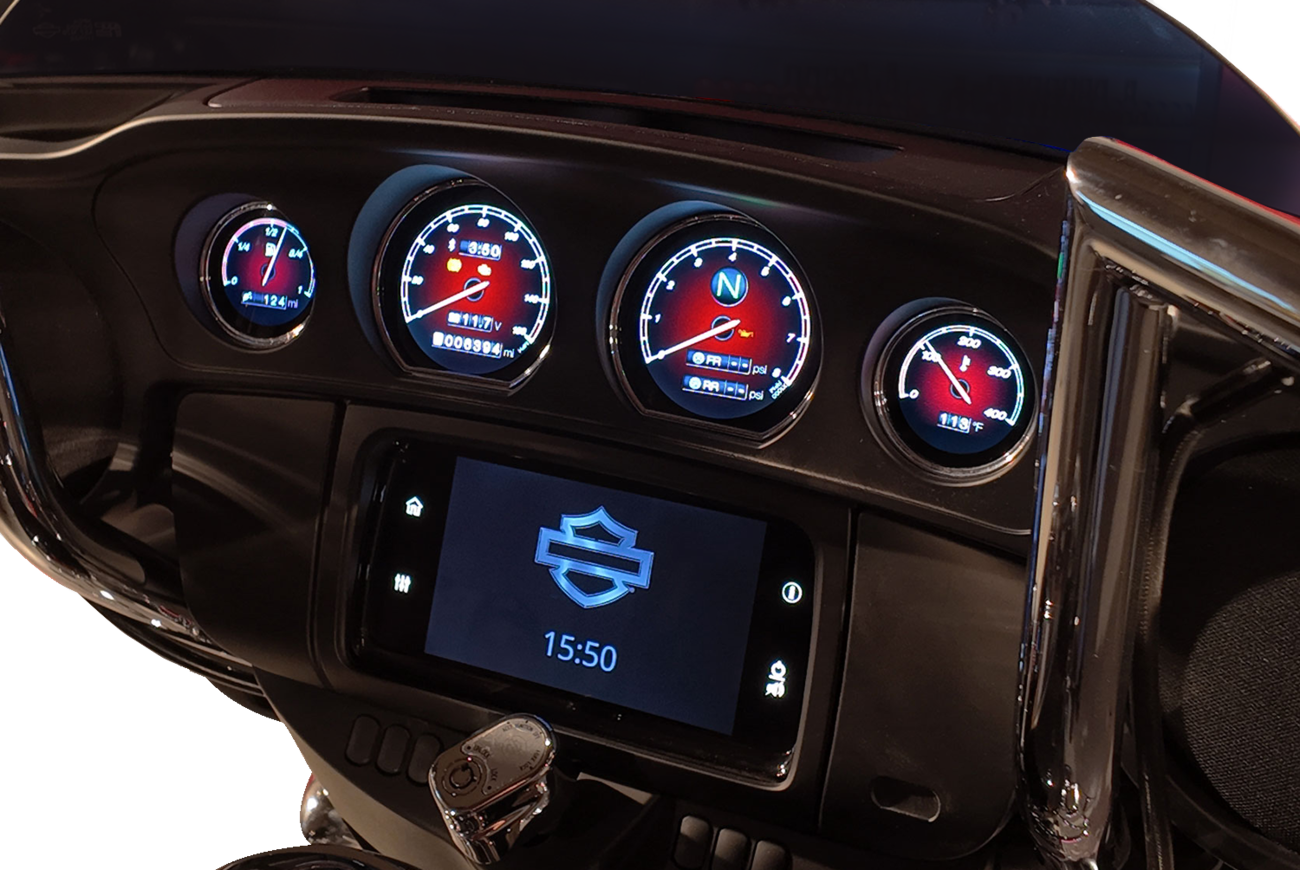

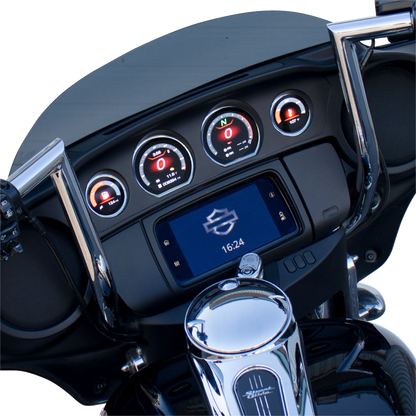

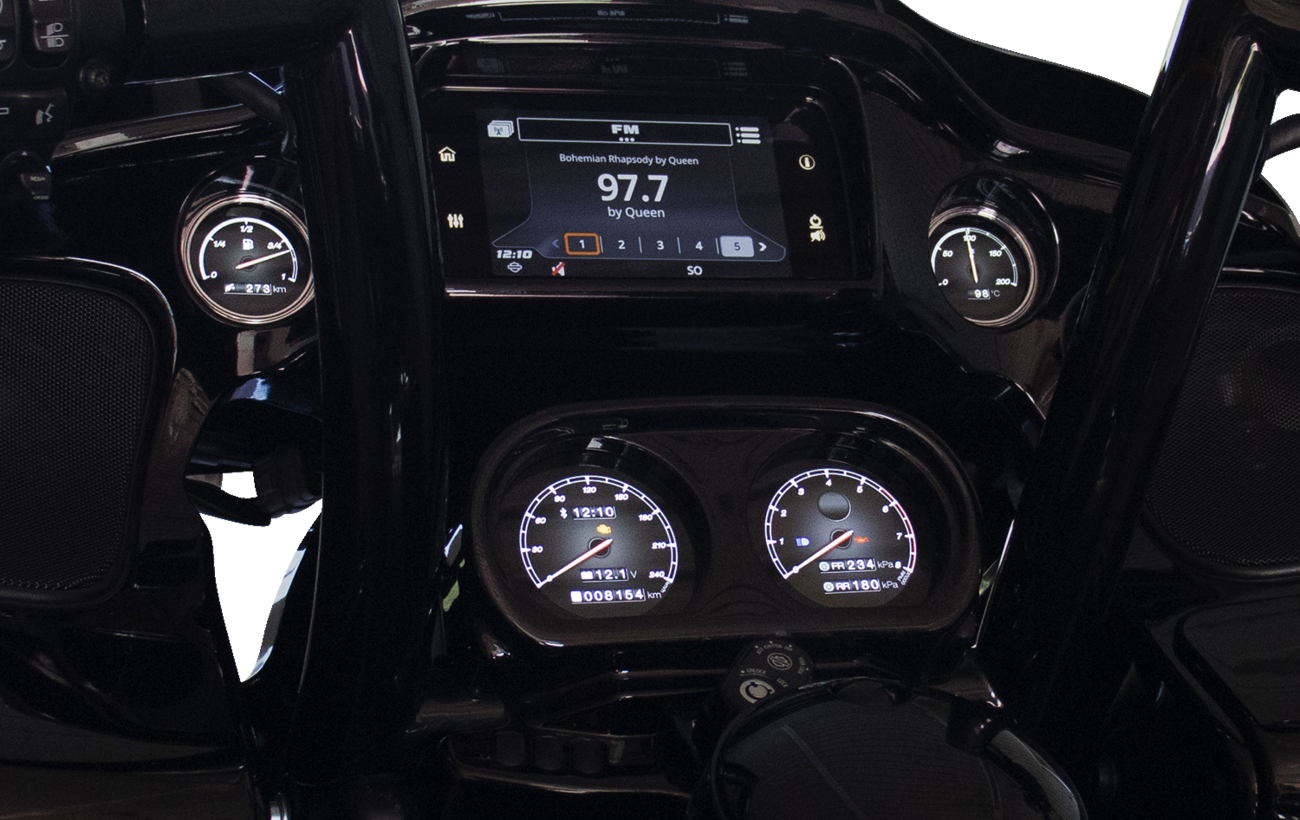

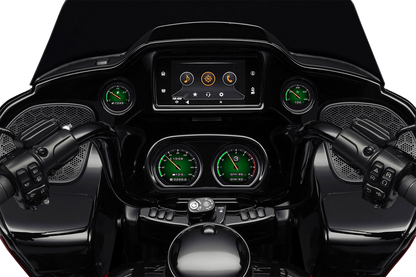

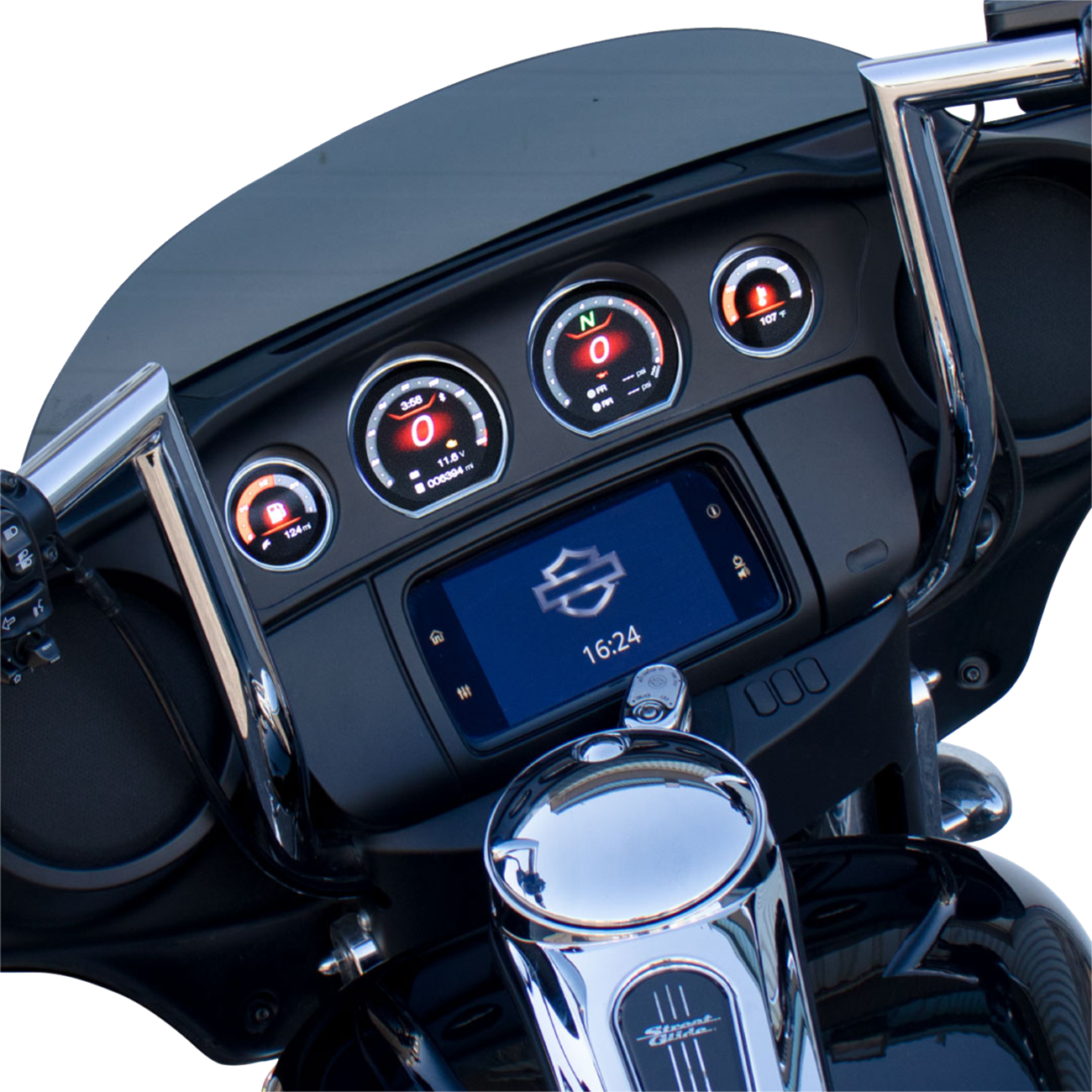

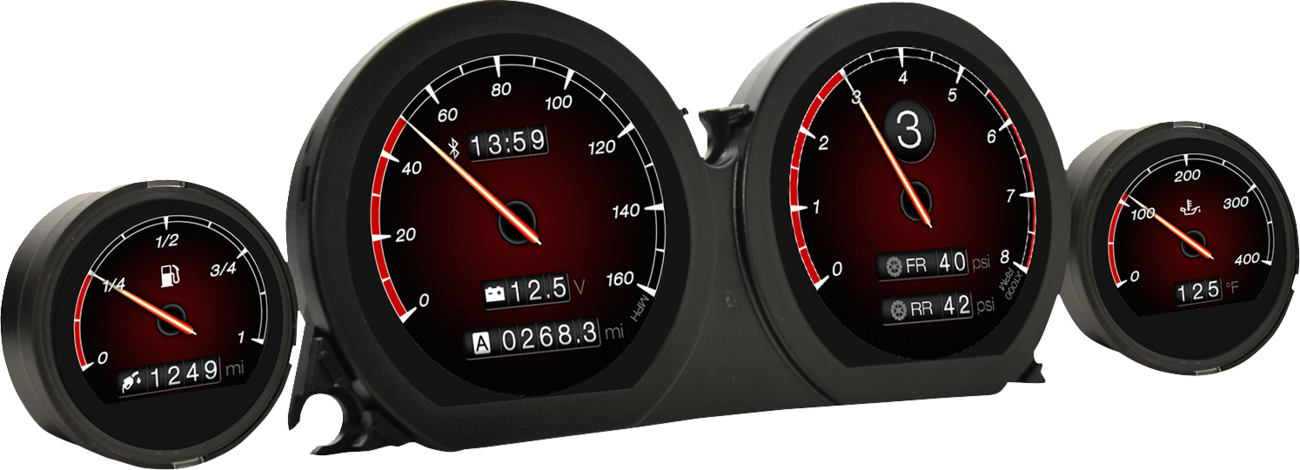

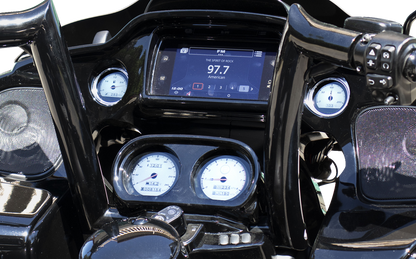

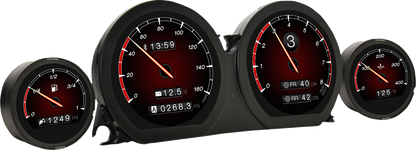

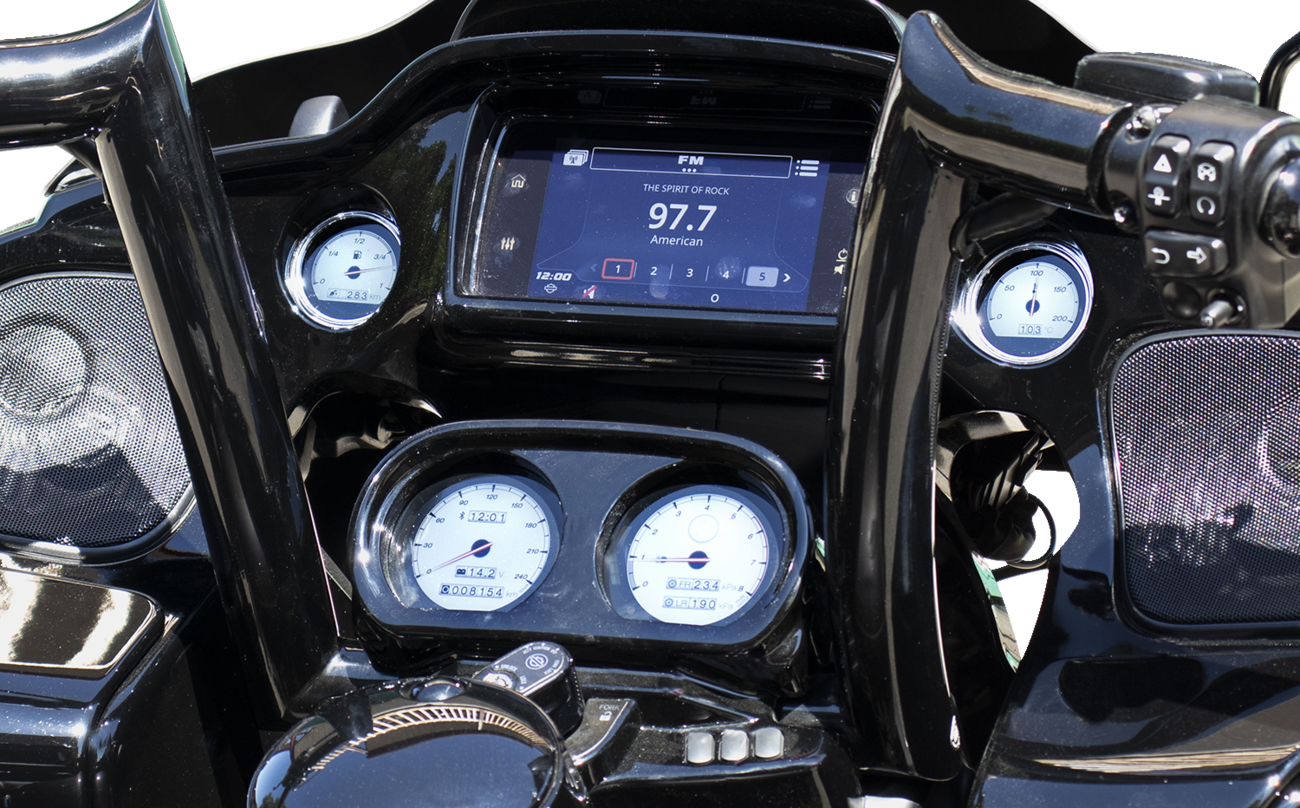

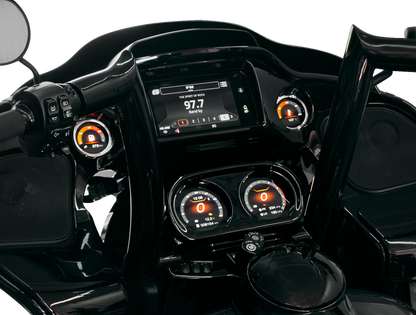

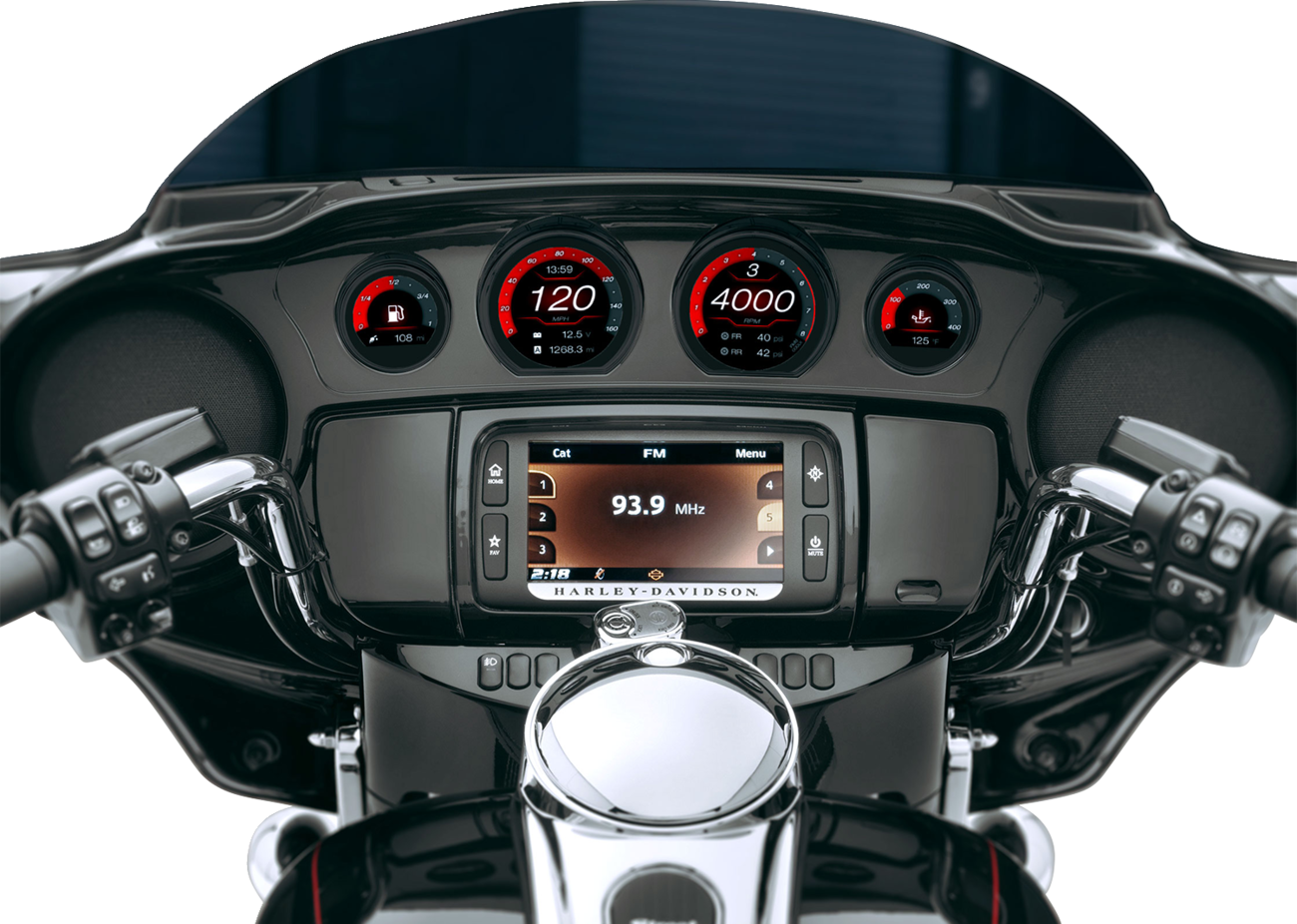

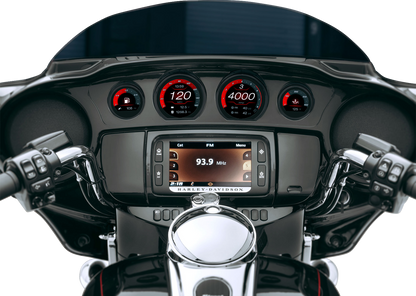

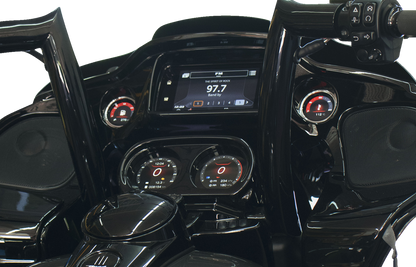

Koso HD-03X TFT Electronic Multi-Function Gauge Set for 2014-2023 Harley Touring

Features

• Plug and play
• Color customization with daytime and nighttime modes
• Features a smartphone integration that gives full control of dashboard directly from the device
• Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
• Can see vehicle’s location on the app and never have to search for it again in crowded places

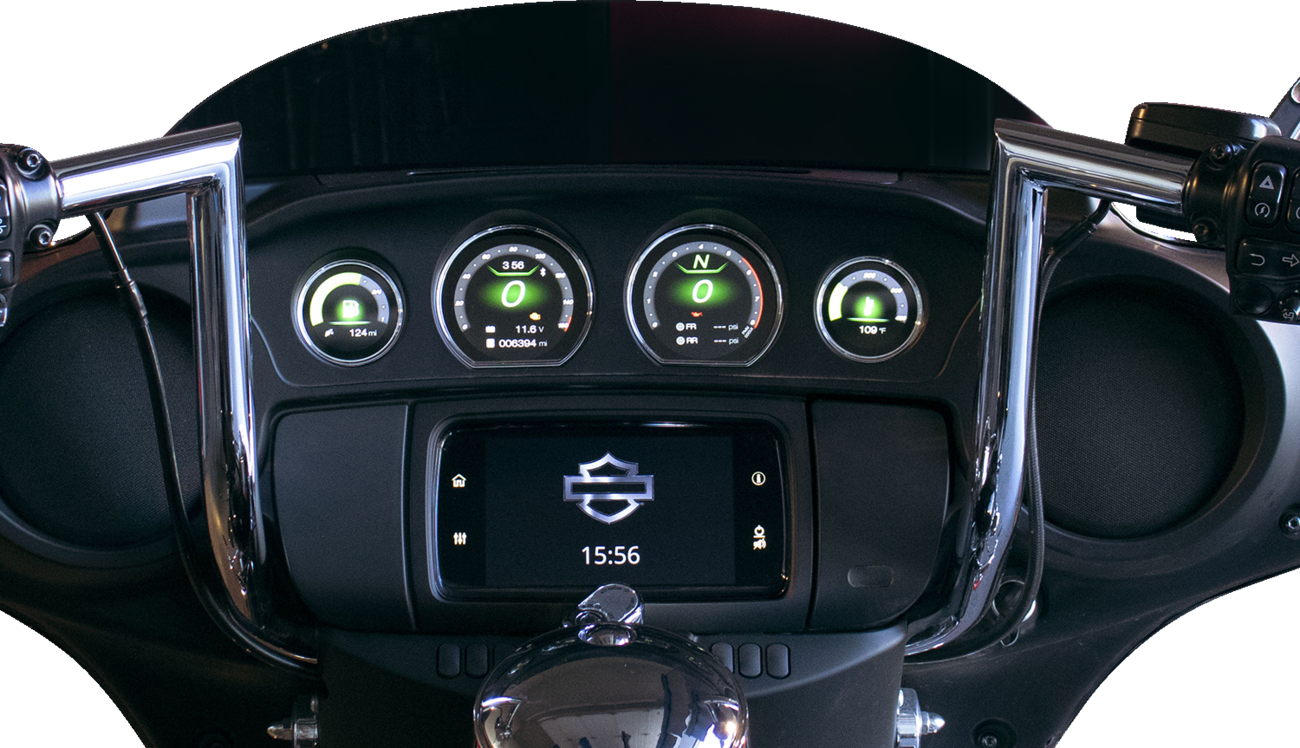

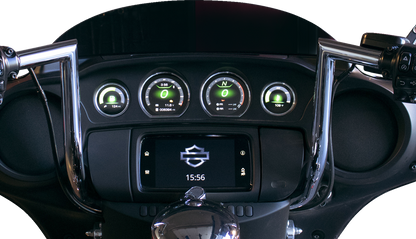

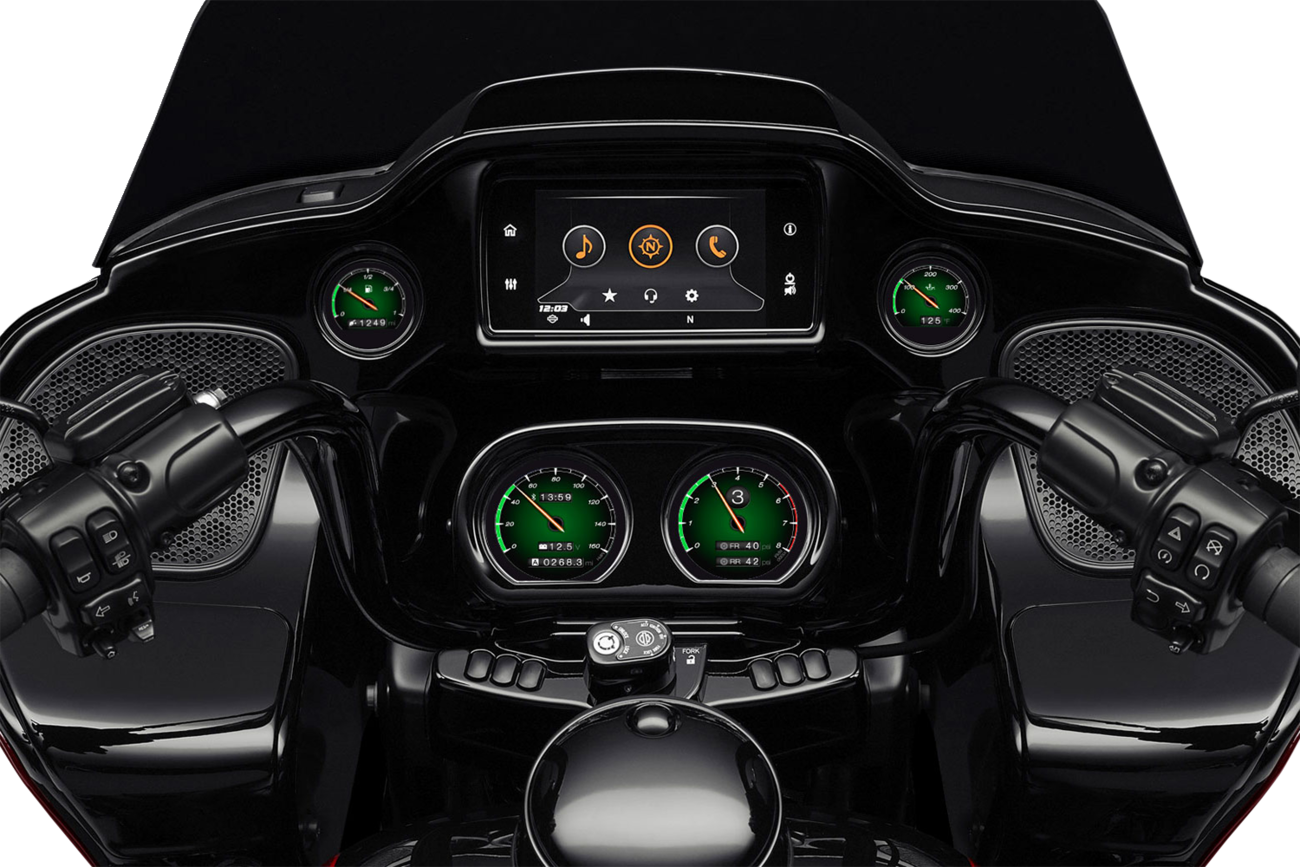

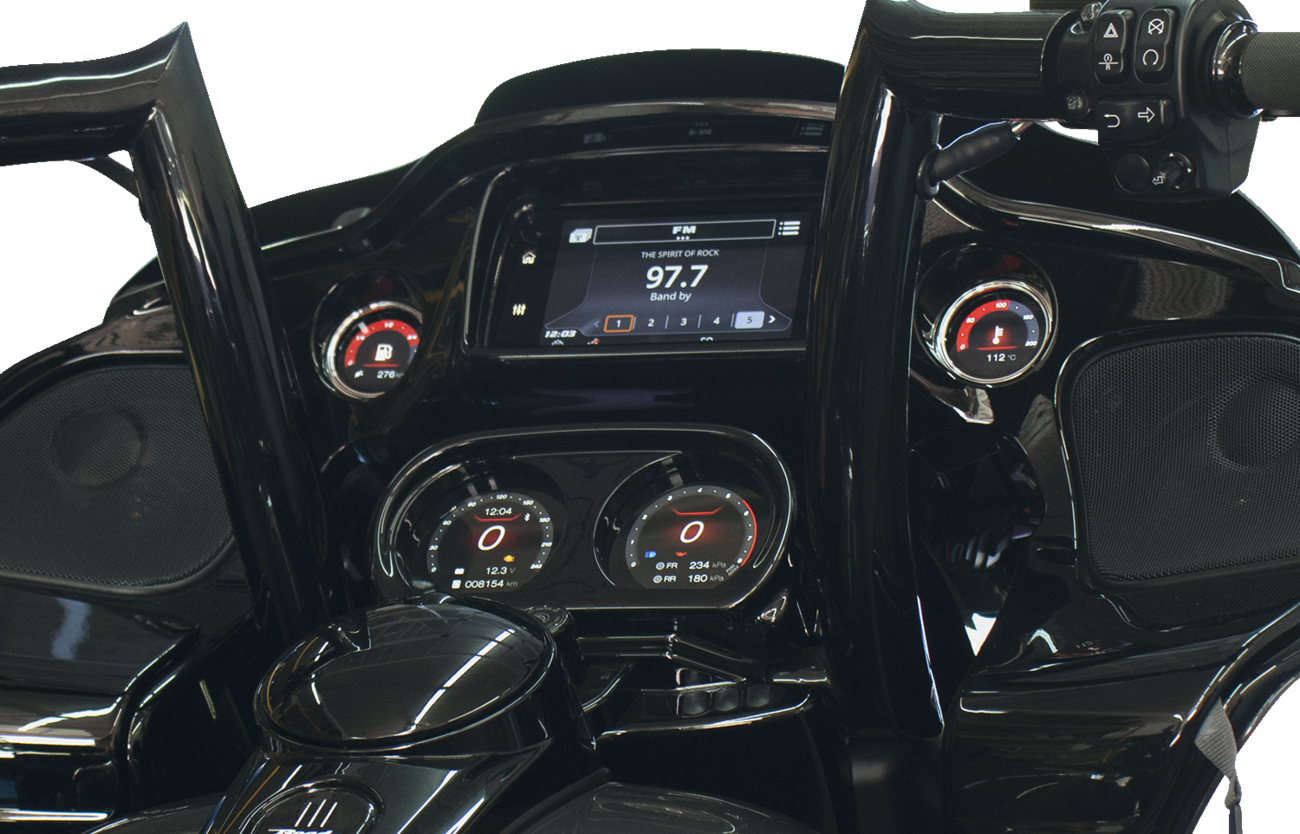

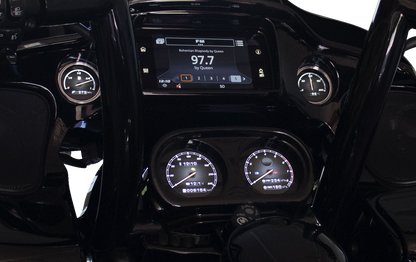

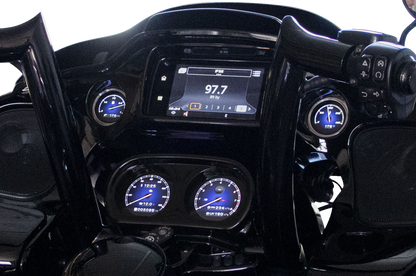

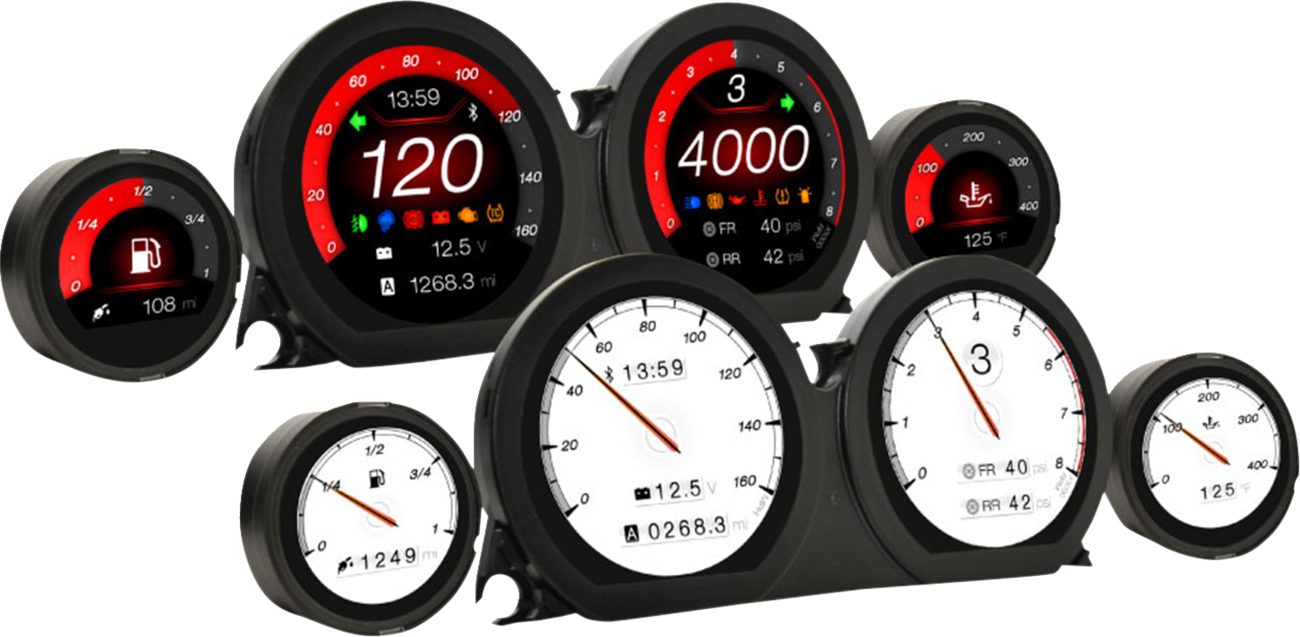

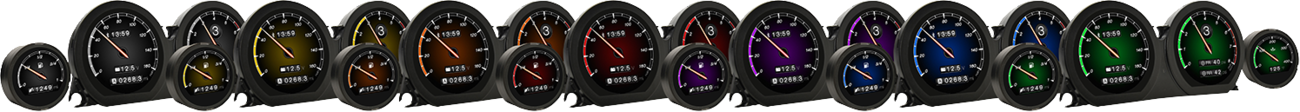

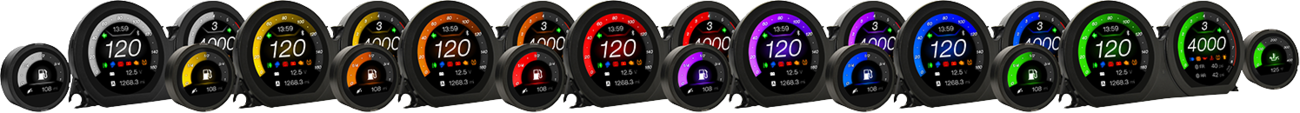

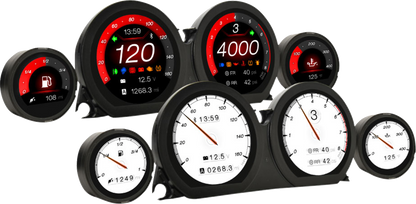

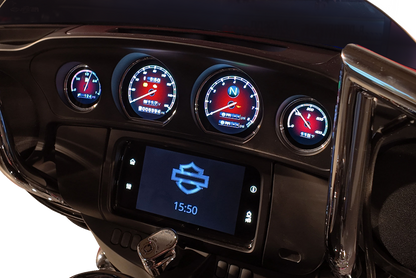

• Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
• K Link app also allows to check system health and maintenance with its diagnostics feature
• Optional air pressure sensor for models equipped with air suspension is available separately
• Specifications:
• Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
• Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
• Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
• Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
• Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
• To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge
• Optional air pressure sensor kit sold separately (part # 2212-0901)
